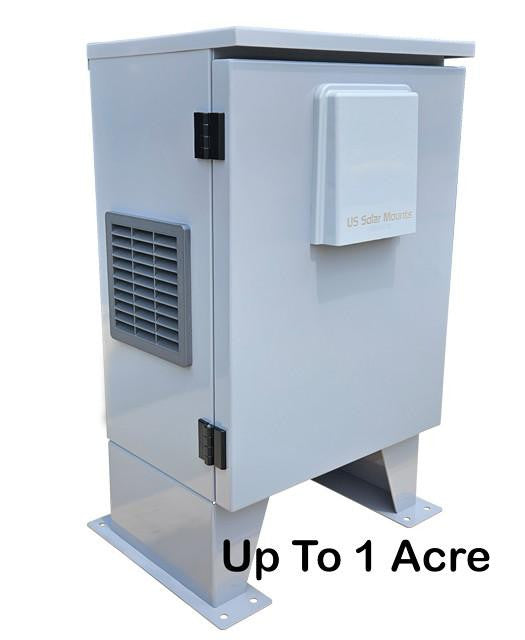

AC-LA1 Aeration System

Now available with our Automatic Slow Start Control built in.

The AC-LA1 Aeration System efficiently aerates ponds up to 1 acre using standard 120V power — no solar panels or batteries required. Made with high-quality, American-Made components, the AC-LA1 delivers rugged, low-maintenance, high-volume aeration on any site. Available in ground-mount and pole/post-mount versions.

Standard Features:

• 1/4HP, 120-Volt Rocking Piston Compressor (Made in USA)
• Easy-Access, Washable enclosure filters
• All-Welded Steel Enclosure with Powder Coat Finish
• Lockable door latches for security
• Standard 5-year Warranty on all non-wearable parts
• Rubber isolation mounts on compressor
• Compressor intake filter silencer w/ replaceable filter cartridge
• Pressure relief valve
• Engineered air flow for cooler operation
• Rated depth of 50'+

Enclosure Dimensions: 16.5"W x 20.5"H x 12"D

Optional Base Mount adds 6" to the height.

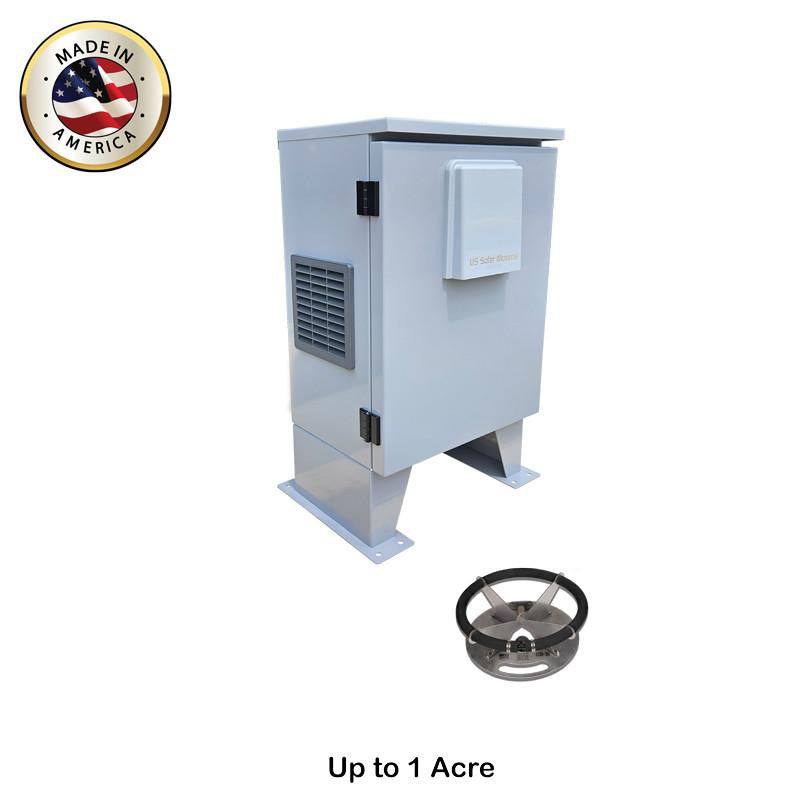

The kit includes:

• Complete compressor system as pictured
• (1) DB36 Diffuser
• Heavy-Duty AC Power Cord
• Mounting Brackets or Optional Base Kit
• Instructions & Tech Support
• 2-years compressor, 5-years non-wearable parts warranty

* Time Clock and Slow Start Controls are Factory-Installed options.

* Pole/Post Mount is standard, Base Mounting Kit is optional and Field-Installed.

* Aerators must be supplied with a 120-Volt, 15 or 20-Amp, GFCI-Protected circuit.

* Installer must ensure proper voltage at the compressor while running. If you need help with wiring sizing, we can perform voltage-drop calculations for you free of charge.

Contact us with any questions.
