SD2 Solar-Direct Aerator For up to 2 Acres with Single Panel

The SD-2 Solar Aerator will efficiently aerate ponds up to 2 acre. Powered entirely by the Sun!  Made with high-quality, American-Made components, the SD2 provides low-maintenance, high-volume Solar Aeration on any site. No batteries, AC wiring, or electrician are needed, saving you time and money. A brushless compressor offers over 3x the system life compared to cheap, permanent magnetic motors.

A Few SD-2-PM Features:

• 2.8 CFM @ 10 PSI
• Brushless DC Rocking Piston Compressor
• Low-Light Operation - Runs with as little as 6% Sunlight
• Very EASY & FAST installation
• Extremely Quite - less than 65db @6'
• Pole-Mount Enclosure & Hardware
• Extremely Rugged Steel Enclosure.
• Enclosure is all-welded and powder coated
• Locking Cabinet Hardware
• High-Flow enclosure cooling and ventilation

• Proprietary High-Efficiency Digital Motor Controller
• Intake filter/silencer with replaceable filter cartridges
• Industry Exclusive Standard 5-year Warranty on all non-wearable parts
• Dramatically increased daily run hours
• Rated depth of 30'+
• 345+ Watt American Made 60-Cell Solar Module (41"x69")

For a full list of features and specifications, click here: BLDC spec sheet

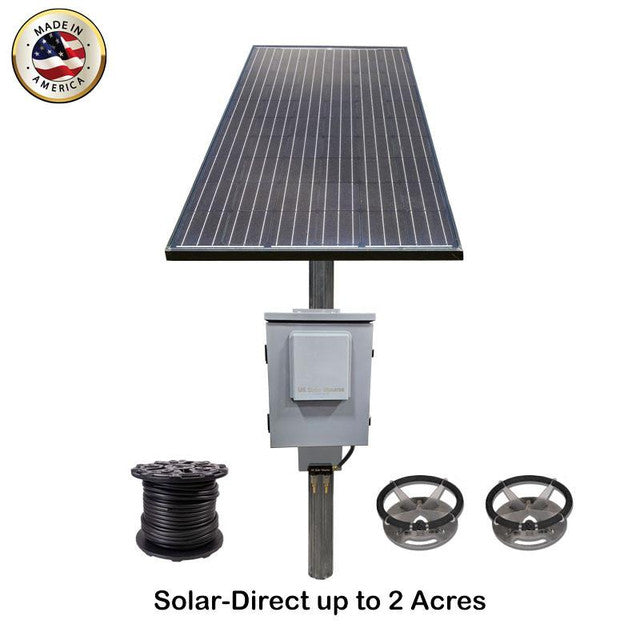

The SD-2 kit includes:

• Complete compressor/control system
• (1) 60-Cell Solar Module & Adjustable Pole-Top Mount
• Pole mount enclosure with mounting hardware
• (2) DB36 Diffuser
• (1) 300' x 3/8" Weighted Hose
• PV Cables
• Easy to Follow Instructions
• Full TECH SUPPORT
• Factory Warranty

Should you add a second panel?

The SD-2 package ships with a single 60-Cell solar panel.  This panel provides approximately 2x the power required by the compressor for full-speed operation under even moderate lighting conditions.  Many (if not most) customers choose to add a 2^nd module to SD-1 & SD-2 systems that must operate during periods of very low light and/or possible snow cover.  The additional panel will not change the operation of the compressor on a sunny day, but extends the run time quite dramatically during times of low light and cloudy weather.  Adding a 2nd panel will allow an SD-1 or SD-2 aerator to run very well during very dark, overcast conditions - even during rain or snowfall.

Customer supplies a 3" (3.5" OD) SCH40/SCH80 steel mounting pole.

DO NOT use Plastic Pipe/Tube.

Contact us with any questions. See warranty information here.
